GEARLESS ELEVATOR MACHINE

"Innovative Motor Solutions"

Gearless Elevator Motors-Ascent Series (Machine roomless MRL elevator motor)

Mark Elektriks brings to the Indian customers world class technology of Gearless Permanent Magnet Machines for Elevator Applications under the “ASCENT” brand of Gearless elevator machines for Home lift and commercial /freight element. The “ASCENT” Series of Gearless elevator motors (Machine roomless MRL elevator motor) brings many advantages over the conventional Geared elevator motors.

Benefits:

“Mark” gearless elevator motors are permanent magnet synchronous machines (Machine roomless MRL elevator motor) and distinguish themselves with:

  • Simple installation
  • Suitable for elevators with or without machine room (Machine roomless MRL elevator motor)
  • High efficiency and Energy Saving of more than 30%
  • Manual brake release
  • Quiet and smooth operation for passenger comfort
  • Maintenance free operation and Easy adjustment
  • Package solution (motor + inverter)
  • It is also equipped with a manual release device for emergency evacuation in case of powerloss
  • Certified brake (certification in process)

The “Ascent” elevator motor series is specially designed for Machine roomless MRL elevators in suspension 2:1

Why Us?

  • More than 25 years experience in Permanent Magnet Synchronous Motor.
  • More than 45 years experience in special motors
  • Indigenously manufactured hence cost effective
  • Being Indian Manufacturer easy technical and service back up
  • Several Machine roomless MRL elevator motor

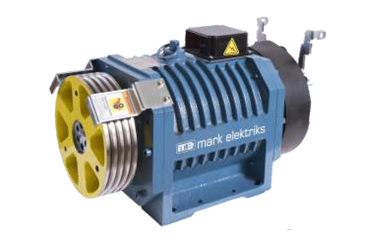

Home Lift

  • We bring to you a compact easy to install Gearless Lift Motor
  • Rated Load – Upto 6 persons(408 Kg)
  • Rated Speed – 0.3 to 1 m/s
  • Travel Height – upto 20 m
  • Suspension – 2 : 1
  • Cooling Type - Self Cooling
  • Brake :
    Dual independent side brake
    Dual rotate disc brake mounting at motor back side

GEM 6 ( 6 passengers)

  • Rated Load – Upto 6 persons (420Kg)
  • Rated Speed –1 m/s
  • Brake : Dual rotate disc brake mounting at motor back side
  • Sheave dia. : Ø 320 mm/Ø 240 mm
  • Main shaft load – 1500 Kg. to 1800 Kg.
  • Suspension – 2 : 1
  • Cooling Type - Self Cooling

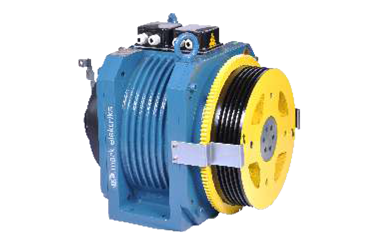

GEM 8 - GEM 16( Up to 16 passengers)

  • Rated Load – Upto 16 persons (1088 Kg)
  • Rated Speed – 1 m/s - 1.75 m/s
  • Brake : Dual rotate disc brake mounting at motor back side
  • Sheave dia. : Ø 320 mm
  • Main shaft load – 2400 Kg. to 3500 Kg.
  • Suspension – 2 : 1
  • Cooling Type - Self Cooling
